ODI EMIG V2 Lock On Red White Motocross Grips

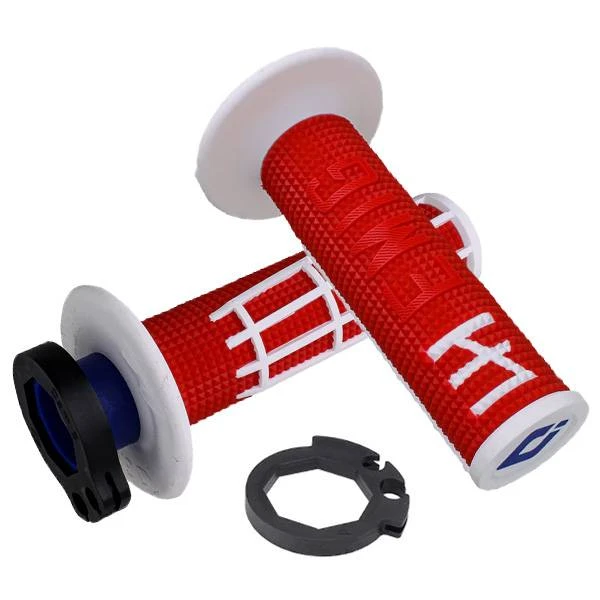

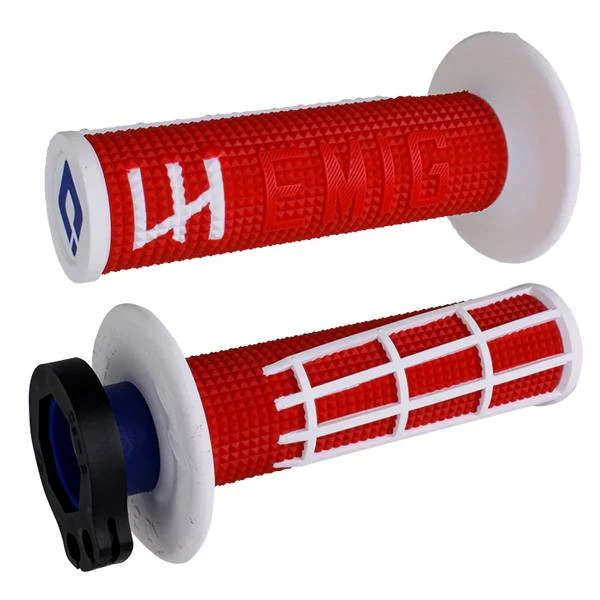

ODI EMIG V2 Lock On Motocross Grips in Red White

NO GRIP u2013 NO GLORY!  The 5-Time National Motocross and Supercross champion has outdone himself again.  Redeveloping the all-time favorite to make it even better and produced to give you an even more amazing riding experience!

ODI EMIG V2 Lock-On Grip features:

• 100% Slip-Free Performance Guaranteed

• Designed to fit 7/8″ Size Handlebar Controls

• Lock-On Grip provides simple installation and removal

• 3mm Allen ensures solid twist-free mounting without waiting for glue to dry

• No safety wire required means longer grip life, even in the event of a crash

• Easy Knockout Ends to Accommodate Full-Wrap Handguards

• Throttle Tube Included with Snap-On Throttle Cams to match most modern MX bikes

• Please note: Includes Cams for most popular modern 2-Stroke & 4-Stroke MX Bikes:

  • 2-Stroke Cams: C & D

  • 4-Stroke Cams: B, J & K

ODI V2 Lock-On Grip fitment:

Throttle Side:  Use the Application Chart on the reverse to select the appropriate Throttle Cam. Snap-Cam into position onto the throttle grip. There is an audible u201cclicku201d when the cam is fully snapped into place.  NOTE:  Some grip patterns require that you clock the cam before installation to achieve desired grip position.

1. Use Masking tape to mask off the handlebar just past the knurling on the clutch side of the handlebar. This will keep your handlebars finish looking fresh.

2. Take a metal file, using even strokes, diagonally file along the knurling area to gently knock down the knurls and create a smoother, slightly smaller outside diameter.

3. Complete this task all the way around the handlebar to conform to an even smoothed out knurled pattern and softer finish

4. Once you have filed the knurls down, all the way around, youu2019ll want to gently test fit the grip onto the bar. DO NOT use force. Once you can securely slide the grip over the knocked down knurls, you will want to remove the grip to sand and finish.

5. Use a medium grit, wet/dry sandpaper to de-burr the surface and create a smooth transition for your new ODI Lock-On Grips to slide onto.

6. Remove masking tape, install your grips and go ride!! TORQUE SPECS: 40-45 In-lbs / 4.5-5 Nm

Clutch Side:  Remove old grips and clean handlebars thoroughly.  Slide the ODI clutch grip onto bar. The grip should slide easily onto the bars until the final inch of the grip where it will become progressively tighter to the handlebar.

Fitting with Wrap-around Handguards: ODI V2 Lock-Onu2122 Grips can easily be modified to work with u201cfull-wrapu201d handguards by removing the end caps.  Follow these simple steps to remove ODI end caps:

1. Carefully use a sharp blade to score the grip along the inside edge of the outer circle of each grip

2. Use a small punch (T-Handle or ratchet extension) to knock out the end of each grip

3. Carefully remove any excess rubber that may interfere with the throttle tube, allowing for nonrestricted turn on the handlebar

Please note:  After opening the grip end, do not run the throttle tube without the full-wrap handguards or ODI end plugs to close off the end of the grip.  This can allow for dirt and debris to build up and cause interference with the proper functioning of the throttle.
